WAW 100E Compact Hydraulic Servo Universal Testing Machine
Whatsapp
Email

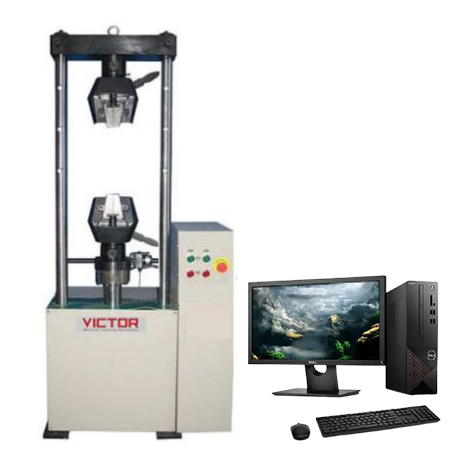

WAW 100E Compact Hydraulic Servo Universal Testing Machine

[product_tags_no_comma_alt]
Request a quote
Whatsapp
Email

Application

Standards Compliance

  • This machine meets the requirements of internationally recognized standards, including:
  • ISO7500-1
  • ISO6892
  • ASTM E8
  • ASTM 370
  • EN10002
  • JIS Z2841

Specification

  • Maximum Test Load: 100 kN
  • Test Load Accuracy: ±1%
  • Displacement Accuracy: ±0.5%
  • Load Measuring Mode: High-accuracy load cell
  • Displacement Measuring Mode: High-accuracy photoelectrical encoder
  • Maximum Tensile Test Space: 350 mm
  • Maximum Compression Test Space: 600 mm
  • Piston Stroke of Oil Cylinder: 0–200 mm
  • Testing Speed: 0.5–100 mm/min
  • Maximum Ram Return Speed: 100 mm/min
  • Grip for Round Specimens: Diameter 4–20 mm
  • Grip for Flat Specimens: Thickness 0–21 mm
  • Upper and Lower Compression Plate Diameter: 100 mm
  • Motor Power for Oil Pump: 1.1 kW
  • Unit Dimensions: 720 × 510 × 1650 mm
  • Control Mode: Servo control

The WAW 100E’s advanced hydraulic system, combined with servo control and high-precision measurement components, ensures reliable and accurate material testing across a wide range of applications.

Gallery

Coming Soon

Application

Standards Compliance

  • This machine meets the requirements of internationally recognized standards, including:
  • ISO7500-1
  • ISO6892
  • ASTM E8
  • ASTM 370
  • EN10002
  • JIS Z2841

Specification

  • Maximum Test Load: 100 kN
  • Test Load Accuracy: ±1%
  • Displacement Accuracy: ±0.5%
  • Load Measuring Mode: High-accuracy load cell
  • Displacement Measuring Mode: High-accuracy photoelectrical encoder
  • Maximum Tensile Test Space: 350 mm
  • Maximum Compression Test Space: 600 mm
  • Piston Stroke of Oil Cylinder: 0–200 mm
  • Testing Speed: 0.5–100 mm/min
  • Maximum Ram Return Speed: 100 mm/min
  • Grip for Round Specimens: Diameter 4–20 mm
  • Grip for Flat Specimens: Thickness 0–21 mm
  • Upper and Lower Compression Plate Diameter: 100 mm
  • Motor Power for Oil Pump: 1.1 kW
  • Unit Dimensions: 720 × 510 × 1650 mm
  • Control Mode: Servo control

The WAW 100E’s advanced hydraulic system, combined with servo control and high-precision measurement components, ensures reliable and accurate material testing across a wide range of applications.
