VIPPL6 Handsheet Former
Whatsapp
Email

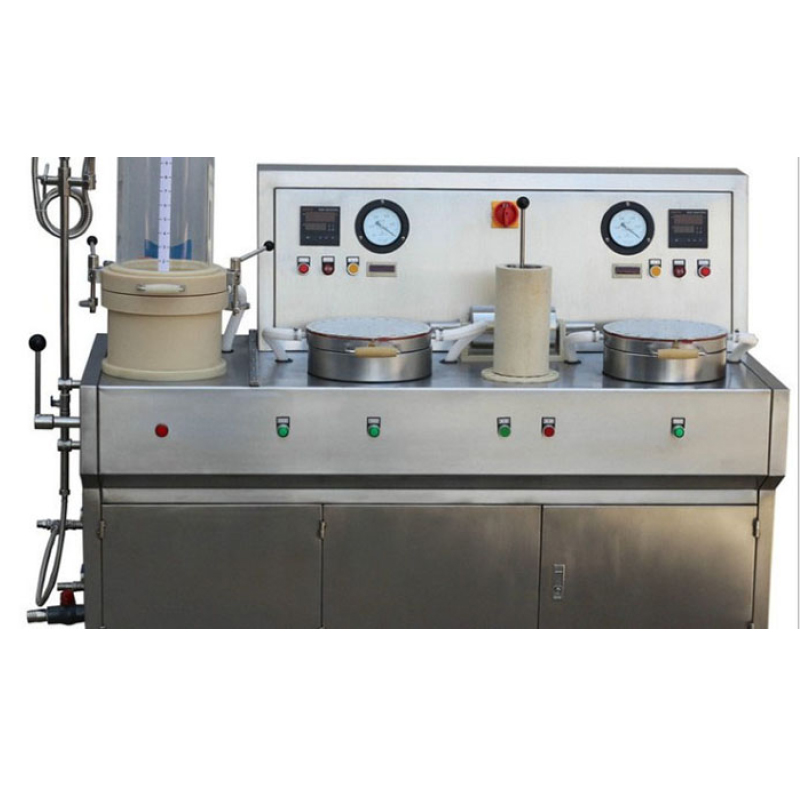

VIPPL6 Handsheet Former

[product_tags_no_comma_alt]
Request a quote
Whatsapp
Email

Application

The VIPPL6 Handsheet Former is a high-performance instrument designed for research and experimental applications in papermaking research institutes and paper mills. It converts pulp into sample sheets for subsequent physical strength testing, allowing users to evaluate raw pulp material properties and assess beating process specifications. Built to meet China’s national standards for papermaking physical inspection equipment, this machine offers a combination of precision, efficiency, and user-friendly operation.

Features

  • Electrically controlled valves for enhanced automation and ease of use
  • Advanced oil return prevention system to eliminate vacuum pump shutdown issues and oil backflow during power failures
  • Vacuum-pumped heating and drying system for faster drying speeds and improved efficiency
  • Long-lasting heating element with easy replacement capability
  • Intelligent PID temperature control system with high precision and safety features, including short circuit, wire break, and over-temperature alarms
  • Stainless steel (304L) construction for durability and corrosion resistance
  • Equipped with four standard floating press rollers for consistent sample formation
  • Integrated spraying and washing device for easy maintenance

Specification

Technical Specifications

  • Sample Sheet Diameter: ≤200mm
  • Vacuum Degree of Vacuum Pump: 0.092-0.098MPa
  • Drying Temperature: ≤105℃
  • Drying Time (30-80g/m²): 3-6 minutes
  • Heating Power: 1.5KW×2
  • Voltage: 220V
  • Intelligent PID Temperature Controllers: XMT616 ×2
  • Operating Power Supply: AC/DC 85-260V (50Hz/60Hz)
  • Thermal Resistance: PT100
  • Operating Environment: 0-50℃, ≤85% RH
  • Contact Capacity: AC 250V/3A
  • Measurement Accuracy: 0.2% F.S

Additional Components

  • Time Totalizer: DHC9J-L
    • Data Storage: E2ROM (10-year retention)
    • Display: 5-digit LED
    • Time Range: 1s–9999.9h
    • Power Supply: AC/DC 100V-240V
    • Power Consumption: ≤3.5VA
    • Time Precision: ≤0.1%

Power and Electrical Details

  • Vacuum Pump Motor Power: 2.2KW
  • Vacuum Pump Voltage: 380V
  • Jet Self-Priming Stainless Steel Pump Motor: 370W
  • Pump Motor Voltage: 380V
  • Electromagnetic Vacuum Belt Inflation Valve: 0.048A, 220V
  • Vacuum Electromagnetic Valves: ×2, 220V
  • Water Drainage Electromagnetic Valve: 220V

Physical Dimensions

    • Dimensions: 1800mm×720mm×1430mm

Gallery

Coming Soon

Application

The VIPPL6 Handsheet Former is a high-performance instrument designed for research and experimental applications in papermaking research institutes and paper mills. It converts pulp into sample sheets for subsequent physical strength testing, allowing users to evaluate raw pulp material properties and assess beating process specifications. Built to meet China’s national standards for papermaking physical inspection equipment, this machine offers a combination of precision, efficiency, and user-friendly operation.

Features

  • Electrically controlled valves for enhanced automation and ease of use
  • Advanced oil return prevention system to eliminate vacuum pump shutdown issues and oil backflow during power failures
  • Vacuum-pumped heating and drying system for faster drying speeds and improved efficiency
  • Long-lasting heating element with easy replacement capability
  • Intelligent PID temperature control system with high precision and safety features, including short circuit, wire break, and over-temperature alarms
  • Stainless steel (304L) construction for durability and corrosion resistance
  • Equipped with four standard floating press rollers for consistent sample formation
  • Integrated spraying and washing device for easy maintenance

Specification

Technical Specifications

  • Sample Sheet Diameter: ≤200mm
  • Vacuum Degree of Vacuum Pump: 0.092-0.098MPa
  • Drying Temperature: ≤105℃
  • Drying Time (30-80g/m²): 3-6 minutes
  • Heating Power: 1.5KW×2
  • Voltage: 220V
  • Intelligent PID Temperature Controllers: XMT616 ×2
  • Operating Power Supply: AC/DC 85-260V (50Hz/60Hz)
  • Thermal Resistance: PT100
  • Operating Environment: 0-50℃, ≤85% RH
  • Contact Capacity: AC 250V/3A
  • Measurement Accuracy: 0.2% F.S

Additional Components

  • Time Totalizer: DHC9J-L
    • Data Storage: E2ROM (10-year retention)
    • Display: 5-digit LED
    • Time Range: 1s–9999.9h
    • Power Supply: AC/DC 100V-240V
    • Power Consumption: ≤3.5VA
    • Time Precision: ≤0.1%

Power and Electrical Details

  • Vacuum Pump Motor Power: 2.2KW
  • Vacuum Pump Voltage: 380V
  • Jet Self-Priming Stainless Steel Pump Motor: 370W
  • Pump Motor Voltage: 380V
  • Electromagnetic Vacuum Belt Inflation Valve: 0.048A, 220V
  • Vacuum Electromagnetic Valves: ×2, 220V
  • Water Drainage Electromagnetic Valve: 220V

Physical Dimensions

    • Dimensions: 1800mm×720mm×1430mm

Gallery

Coming Soon
