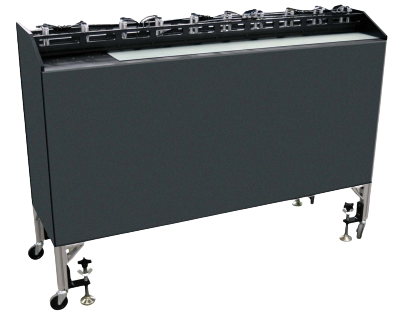

PHAETON™ Offline Film Thickness Measurement System

[product_tags_no_comma_alt]
Request a quote
Whatsapp
Email

Application

The PHAETON™ Offline Film Thickness Measurement System is an advanced solution designed for rapid and precise paint thickness profiling on coated metal strips. Installed near the exit shear or inspection station of a Continuous Paint Line (CPL), this system provides full-width paint thickness profiles for both the top and reverse sides of the strip within seconds. Real-time data display just outside the coater room ensures immediate identification and correction of setup issues, improving efficiency and product quality.

Features

  • Instantaneous paint thickness profiling for both top and reverse sides
  • Full strip-width measurement with real-time data display
  • Calibration-free operation, independent of paint or substrate type
  • Advanced laser technology for precise coating thickness detection
  • Measurement range from 3µm to 200µm
  • Adjustable baseline for measurements: top, bottom, or middle of the paint surface

Operation Principles

Principle of Operation The PHAETON™ system uses a direct, calibration-free measurement approach, ensuring consistent accuracy regardless of coating or substrate type. Its laser-based technology penetrates the paint layer and makes contact with the metallic substrate, measuring local paint thickness with exceptional precision. This enables fast, reliable results that facilitate immediate adjustments, optimizing production efficiency and maintaining high-quality standards.

Gallery

Coming Soon

Application

The PHAETON™ Offline Film Thickness Measurement System is an advanced solution designed for rapid and precise paint thickness profiling on coated metal strips. Installed near the exit shear or inspection station of a Continuous Paint Line (CPL), this system provides full-width paint thickness profiles for both the top and reverse sides of the strip within seconds. Real-time data display just outside the coater room ensures immediate identification and correction of setup issues, improving efficiency and product quality.

Features

  • Instantaneous paint thickness profiling for both top and reverse sides
  • Full strip-width measurement with real-time data display
  • Calibration-free operation, independent of paint or substrate type
  • Advanced laser technology for precise coating thickness detection
  • Measurement range from 3µm to 200µm
  • Adjustable baseline for measurements: top, bottom, or middle of the paint surface

Operation Principles

Principle of Operation The PHAETON™ system uses a direct, calibration-free measurement approach, ensuring consistent accuracy regardless of coating or substrate type. Its laser-based technology penetrates the paint layer and makes contact with the metallic substrate, measuring local paint thickness with exceptional precision. This enables fast, reliable results that facilitate immediate adjustments, optimizing production efficiency and maintaining high-quality standards.

Gallery

Coming Soon
