Application

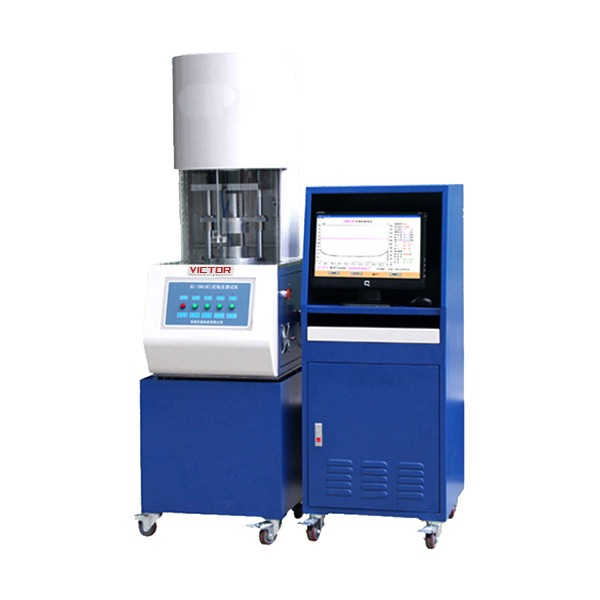

The VR2000 MDR Computer Display Moving Die Rotor Rheometer is a precision instrument designed to determine the vulcanization index and viscosity of rubber materials. By applying specific temperature and pressure conditions, the rotor generates a defined degree of rotation, creating shear stress on the sample and measuring the resulting anti-shear torque. This rheometer is essential for quality control in industries such as rubber manufacturing, tire production, and wire and cable manufacturing.
Compliance Standards
- GB/T 1232: Unvulcanized Rubber Mooney Viscosity
- GB/T 1233: Rubber Characteristics of Initial Curing
- ISO 289
- ISO 667
- ASTM D1646
- GB/T 16584
- ASTM D5289
Specification
Technical Specifications
- Temperature Range: Room temperature to 200°C
- Heating Rate: 15°C/min
- Temperature Fluctuation: ≤ ±0.3°C
- Temperature Resolution: 0.1°C
- Torque Range: 0–5Nm, 0–10Nm, 0–20Nm
- Torque Resolution: 0.001Nm
- Power Supply: 220V ±10%, 50Hz
- Pressure: ≅0.4 MPa
- Air Pressure Requirement: 0.5 MPa – 0.65 MPa
- Environmental Temperature: 10°C – 20°C
- Humidity Range: 55% – 75% RH
- Compressed Air: 0.35 MPa – 0.40 MPa
- Swing Frequency: 100 rpm (1.67Hz)
- Swing Angle: ±0.5°C, ±1°C, ±3°C
Data Output
- Date and time of the test
- Temperature and vulcanization curves
- Measurement results including ML, MH, ts1, ts2, t10, t50, Vc1, Vc2
Industry Applications The VR2000 Rheometer is widely used in:
- Rubber manufacturing plants
- Tire production facilities
- Reclaimed rubber factories
- Wire and cable industry
