VIT 161 - Rainproof Tester for Fabric Water Penetration Resistance
Whatsapp
Email

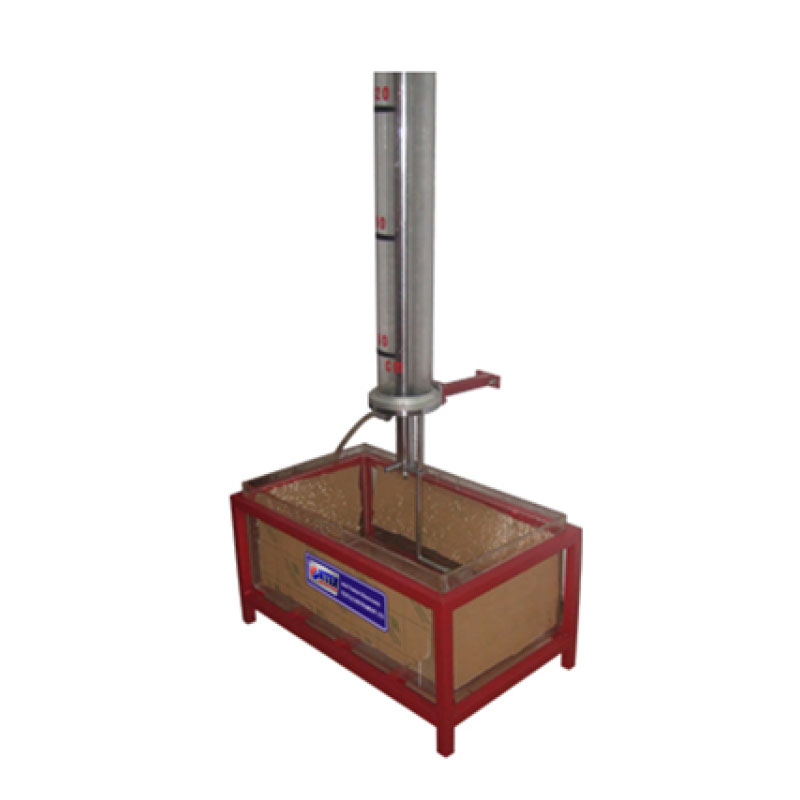

VIT 161 – Rainproof Tester for Fabric Water Penetration Resistance

[product_tags_no_comma_alt]
Request a quote
Whatsapp
Email

Application

The Rainproof Tester is designed to determine the water penetration resistance of fabrics or composites subjected to varying intensities of water impact. This device simulates rainfall by applying horizontal water sprays to fabric samples mounted vertically in a stainless steel bath. The water column, adjustable from 600mm to 2400mm, impacts the fabric surface, and water penetration is measured through the weight change in an absorbent blotting paper backing the sample.

Optional Order

  • AATCC Blotting Paper 500 x 1000mm (20 x 40in) – 25 Sheets

Features

  • Simulated Rain Test: Accurately simulates the effect of rain on fabric, offering real-world insights into fabric waterproofing.
  • Adjustable Water Column: Water impact can be varied from 600mm to 2400mm, making it suitable for testing fabrics in different environmental conditions.
  • Standardized Testing: Meets industry standards (AATCC 35, BS EN ISO 22958, GB/T 23321), ensuring reliable and reproducible results.
  • Precision Nozzle: The nozzle diameter and spacing are carefully controlled for uniform water distribution during testing.
  • High-Performance Testing: The tester can assess the rain resistance of a wide range of fabrics and composites, ensuring they meet necessary waterproofing criteria.

Testing Method

Why Test Fabric Water Permeability?
The water permeability of fabrics refers to their ability to allow liquid water to pass through. This is crucial for evaluating materials used in rainwear, outdoor gear, and other applications where waterproof or water-resistant properties are essential. Testing the rainproof characteristics of fabrics ensures they meet industry standards for moisture protection and durability.

Test Method for Fabric Waterproofing
Several methods are used to assess the waterproofing of fabrics, including the hydrostatic pressure, spray, and rain methods. The Rainproof Tester utilizes the rain method, which mimics the effects of heavy rain on fabric. The process involves mounting fabric samples vertically in a stainless steel bath and subjecting them to simulated rain for five minutes. A standardized blotting paper is placed behind the sample, weighed before and after testing, and the weight difference reflects the water permeability.

Test Procedure

  1. Sample Preparation: Place the fabric sample on the apparatus, ensuring it is backed with blotting paper.
  2. Water Application: The device releases water through a nozzle (diameter 0.99 ± 0.013mm) at a controlled flow rate, simulating rainfall. The water column can be adjusted between 600mm and 2400mm in increments of 300mm.
  3. Test Duration: The fabric is subjected to the simulated rain for five minutes.
  4. Post-Test Weighing: After the test, the blotting paper is weighed again. The difference in weight indicates the amount of water that penetrated the fabric.
  5. Data Reporting: The results show the water permeability of the fabric, with a detailed assessment of how well the fabric resists water penetration under specified conditions.

Test Dimensions

  • Sample size: 200 x 200mm
  • Nip width: 152mm
  • Nip space: 165mm
  • Nip dimensions: 178 x 279mm
  • Nozzle diameter: 0.99 ± 0.013mm
  • Nozzle-to-sample distance: 305mm

Specification

Standards

  • AATCC 35
  • BS EN ISO 22958
  • GB/T 23321

Weight

  • 139 Kg

Dimensions

  • 460 x 460 x 3300mm (L x W x H)



Gallery

Coming Soon

Application

The Rainproof Tester is designed to determine the water penetration resistance of fabrics or composites subjected to varying intensities of water impact. This device simulates rainfall by applying horizontal water sprays to fabric samples mounted vertically in a stainless steel bath. The water column, adjustable from 600mm to 2400mm, impacts the fabric surface, and water penetration is measured through the weight change in an absorbent blotting paper backing the sample.

Optional Order

  • AATCC Blotting Paper 500 x 1000mm (20 x 40in) – 25 Sheets

Features

  • Simulated Rain Test: Accurately simulates the effect of rain on fabric, offering real-world insights into fabric waterproofing.
  • Adjustable Water Column: Water impact can be varied from 600mm to 2400mm, making it suitable for testing fabrics in different environmental conditions.
  • Standardized Testing: Meets industry standards (AATCC 35, BS EN ISO 22958, GB/T 23321), ensuring reliable and reproducible results.
  • Precision Nozzle: The nozzle diameter and spacing are carefully controlled for uniform water distribution during testing.
  • High-Performance Testing: The tester can assess the rain resistance of a wide range of fabrics and composites, ensuring they meet necessary waterproofing criteria.

Testing Method

Why Test Fabric Water Permeability?
The water permeability of fabrics refers to their ability to allow liquid water to pass through. This is crucial for evaluating materials used in rainwear, outdoor gear, and other applications where waterproof or water-resistant properties are essential. Testing the rainproof characteristics of fabrics ensures they meet industry standards for moisture protection and durability.

Test Method for Fabric Waterproofing
Several methods are used to assess the waterproofing of fabrics, including the hydrostatic pressure, spray, and rain methods. The Rainproof Tester utilizes the rain method, which mimics the effects of heavy rain on fabric. The process involves mounting fabric samples vertically in a stainless steel bath and subjecting them to simulated rain for five minutes. A standardized blotting paper is placed behind the sample, weighed before and after testing, and the weight difference reflects the water permeability.

Test Procedure

  1. Sample Preparation: Place the fabric sample on the apparatus, ensuring it is backed with blotting paper.
  2. Water Application: The device releases water through a nozzle (diameter 0.99 ± 0.013mm) at a controlled flow rate, simulating rainfall. The water column can be adjusted between 600mm and 2400mm in increments of 300mm.
  3. Test Duration: The fabric is subjected to the simulated rain for five minutes.
  4. Post-Test Weighing: After the test, the blotting paper is weighed again. The difference in weight indicates the amount of water that penetrated the fabric.
  5. Data Reporting: The results show the water permeability of the fabric, with a detailed assessment of how well the fabric resists water penetration under specified conditions.

Test Dimensions

  • Sample size: 200 x 200mm
  • Nip width: 152mm
  • Nip space: 165mm
  • Nip dimensions: 178 x 279mm
  • Nozzle diameter: 0.99 ± 0.013mm
  • Nozzle-to-sample distance: 305mm

Specification

Standards

  • AATCC 35
  • BS EN ISO 22958
  • GB/T 23321

Weight

  • 139 Kg

Dimensions

  • 460 x 460 x 3300mm (L x W x H)



Gallery

Coming Soon
