VIP001 Leak and Seal Strength Tester
Whatsapp
Email

VIP001 Leak and Seal Strength Tester

[product_tags_no_comma_alt]
Request a quote
Whatsapp
Email

Application

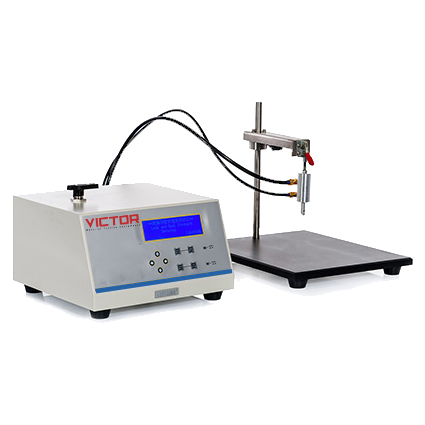

The VIP001 Leak and Seal Strength Tester is a high-precision instrument designed for the quantitative determination of seal performance, seal quality, burst pressure, compression resistance, torsion force, and joint/disengaging force. It is ideal for testing flexible packages, aseptic packages, plastic pilfer-proof closures, flexible tubes, caps, and various other packaging materials.

Compliance Standards

  • ISO 11607-1: Packaging for Terminally Sterilized Medical Devices — Requirements for Materials, Sterile Barrier Systems, and Packaging Systems
  • ISO 11607-2: Validation Requirements for Forming, Sealing, and Assembly Processes
  • GB/T 10440, GB 18454, GB 19741, GB 17447, GB/T 17876, GB/T 10004
  • ASTM F1140: Standard Test Methods for Internal Pressurization Failure Resistance of Unrestrained Packages
  • ASTM F2054: Burst Testing of Flexible Package Seals
  • BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002

Features

  • Micro-computer control with an LCD screen, menu interface, and PVC operation panel
  • Dual test methods: Restraint Distension and Unrestraint Distension
  • Multiple test modes: Burst, Creep, and Creep to Failure
  • Optional test range with “one-key operation” for simplified use
  • Professional software with automatic test data statistics
  • Built-in micro-printer and RS232 port for seamless PC connection and data transfer
  • Supports LystemTM Lab Data Sharing System for uniform test result and report management

Specification

  • Test Range: 0–600 KPa (0–87.0 psi) [Standard]; 0–1.6 MPa (0–232.1 psi) [Optional]
  • Gas Injection Head: Φ10 mm (Standard); Φ4 mm, Φ1.6 mm (Optional)
  • Gas Supply Pressure: Φ8 mm PU Tubing
  • Instrument Dimensions: 300 mm (L) x 310 mm (W) x 180 mm (H)
  • Pedestal Dimensions: 305 mm (L) x 356 mm (W) x 325 mm (H)
  • Power Supply: 220VAC 50Hz / 120VAC 60Hz
  • Net Weight: 23 kg

Gallery

Coming Soon

Application

The VIP001 Leak and Seal Strength Tester is a high-precision instrument designed for the quantitative determination of seal performance, seal quality, burst pressure, compression resistance, torsion force, and joint/disengaging force. It is ideal for testing flexible packages, aseptic packages, plastic pilfer-proof closures, flexible tubes, caps, and various other packaging materials.

Compliance Standards

  • ISO 11607-1: Packaging for Terminally Sterilized Medical Devices — Requirements for Materials, Sterile Barrier Systems, and Packaging Systems
  • ISO 11607-2: Validation Requirements for Forming, Sealing, and Assembly Processes
  • GB/T 10440, GB 18454, GB 19741, GB 17447, GB/T 17876, GB/T 10004
  • ASTM F1140: Standard Test Methods for Internal Pressurization Failure Resistance of Unrestrained Packages
  • ASTM F2054: Burst Testing of Flexible Package Seals
  • BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002

Features

  • Micro-computer control with an LCD screen, menu interface, and PVC operation panel
  • Dual test methods: Restraint Distension and Unrestraint Distension
  • Multiple test modes: Burst, Creep, and Creep to Failure
  • Optional test range with “one-key operation” for simplified use
  • Professional software with automatic test data statistics
  • Built-in micro-printer and RS232 port for seamless PC connection and data transfer
  • Supports LystemTM Lab Data Sharing System for uniform test result and report management

Specification

  • Test Range: 0–600 KPa (0–87.0 psi) [Standard]; 0–1.6 MPa (0–232.1 psi) [Optional]
  • Gas Injection Head: Φ10 mm (Standard); Φ4 mm, Φ1.6 mm (Optional)
  • Gas Supply Pressure: Φ8 mm PU Tubing
  • Instrument Dimensions: 300 mm (L) x 310 mm (W) x 180 mm (H)
  • Pedestal Dimensions: 305 mm (L) x 356 mm (W) x 325 mm (H)
  • Power Supply: 220VAC 50Hz / 120VAC 60Hz
  • Net Weight: 23 kg
