VIP T04 Multi-Station Flex Durability Tester
Whatsapp
Email

VIP T04 Multi-Station Flex Durability Tester

[product_tags_no_comma_alt]
Request a quote
Whatsapp
Email

Application

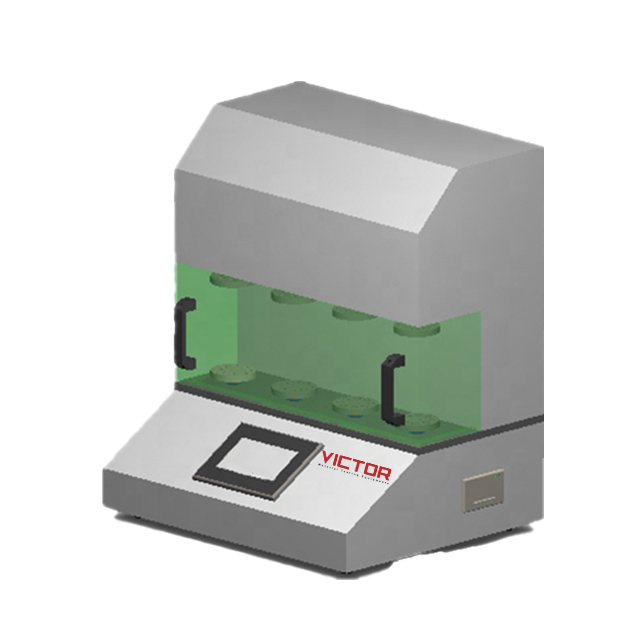

The VIP T04 Multi-Station Flex Durability Tester is designed to evaluate the resistance of films, composite materials, and coating films to repeated flexing stress. By measuring the formation of pinholes and structural failures in the sample, this device ensures the durability and quality of flexible barrier materials. Also known as a Gelboflex tester, it is an essential tool for assessing material performance in packaging and industrial applications.

Compliance Standards

  • ASTM F392: Standard Test Method for Flex Durability of Flexible Barrier Materials

Features

  • Advanced PLC control system with a user-friendly 7-inch touchscreen interface
  • Equipped with 4 independent test stations for increased testing efficiency
  • Offers 5 standard test modes to accommodate a variety of testing needs
  • Quick-switch functionality between long and short stroke settings
  • Supports Conditions A, B, C, D, and E for flexible test configurations
  • Optional micro printer for convenient data reporting

Specification

  • Flexing Frequency: 45 cycles per minute
  • Flexing Angle: 440° (90 mm) or 400° (80 mm)
  • Horizontal Stroke: 155 mm or 80 mm
  • Number of Test Stations: 4
  • Sample Dimensions: 280 mm × 200 mm

Gallery

Coming Soon

Application

The VIP T04 Multi-Station Flex Durability Tester is designed to evaluate the resistance of films, composite materials, and coating films to repeated flexing stress. By measuring the formation of pinholes and structural failures in the sample, this device ensures the durability and quality of flexible barrier materials. Also known as a Gelboflex tester, it is an essential tool for assessing material performance in packaging and industrial applications.

Compliance Standards

  • ASTM F392: Standard Test Method for Flex Durability of Flexible Barrier Materials

Features

  • Advanced PLC control system with a user-friendly 7-inch touchscreen interface
  • Equipped with 4 independent test stations for increased testing efficiency
  • Offers 5 standard test modes to accommodate a variety of testing needs
  • Quick-switch functionality between long and short stroke settings
  • Supports Conditions A, B, C, D, and E for flexible test configurations
  • Optional micro printer for convenient data reporting

Specification

  • Flexing Frequency: 45 cycles per minute
  • Flexing Angle: 440° (90 mm) or 400° (80 mm)
  • Horizontal Stroke: 155 mm or 80 mm
  • Number of Test Stations: 4
  • Sample Dimensions: 280 mm × 200 mm

Gallery

Coming Soon
