VIP 400C1 Touchscreen Melt Flow Rate and Volume Analyzer
Whatsapp
Email

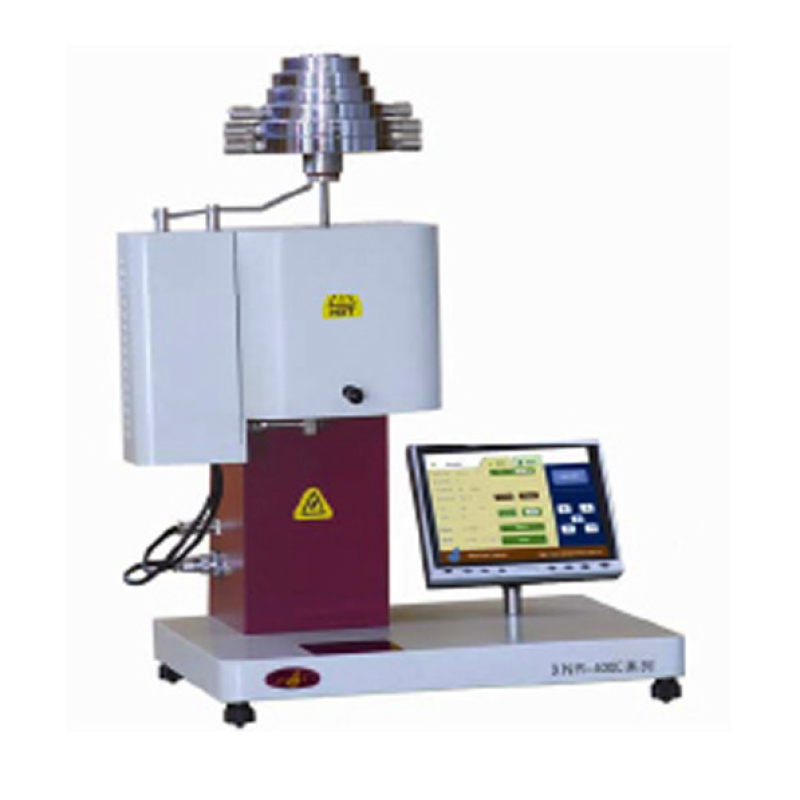

VIP 400C1 Touchscreen Melt Flow Rate and Volume Analyzer

[product_tags_no_comma_alt]
Request a quote
Whatsapp
Email

Application

The VIP 400C1 Touchscreen Melt Flow Rate and Volume Analyzer is a high-performance, cost-effective tabletop instrument designed to measure both the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of a wide range of thermoplastic raw materials, including granules, film strips, and other forms. This device is particularly valuable for quality control in thermoplastics manufacturing, especially when comparing materials with different filler content or evaluating filled and unfilled thermoplastics. The VIP 400C1 features manual weight-loading for flexible sample preparation.

Compliance Standards

  • ISO 1133
  • ASTM D1238
  • GB/T 3682 (Method A & B)
  • BS 2782

Features

  • Measures both MFR and MVR with high precision
  • Clear, multi-line touchscreen display for fast and accurate input of test parameters
  • Built-in microprocessor maintains temperature control within ±0.5°C with rapid ramp-up
  • Automatic material cut-off with a built-in scraper mechanism, controllable to ±0.1 seconds
  • High-accuracy PT100 temperature sensor for consistent performance
  • Automatic conversion of test results with melt density measurement function
  • Built-in micro-printer for immediate test result output
  • Automatic weight-loading device for efficient sample preparation
  • Dual-language software (English and Chinese) with secure password verification for key operations

Specification

  • Operating Temperature: 120°C–450°C
  • Temperature Control Accuracy: ≤0.2°C
  • Temperature Display Resolution: 0.1°C
  • MFR Test Range: 0.01g–200g/min
  • Time Accuracy: 0.01s
  • Displacement Accuracy: ±0.01mm (within 30mm)
  • Measurement Methods: MFR, MVR
  • Temperature Return Time: <4 min
  • Temperature Ramp-Up Time: <30 min
  • Volume Measurement Accuracy: ±0.03% F.S.
  • Cut-Off Interval: 1–36000s
  • Power Supply: 220V/50Hz or 110V/60Hz (specify when ordering)
  • Automatic Extrusion Cut-Off

Accessories

  • Piston Rod: 1 pc
  • Die: 1 pc
  • Die Cleaning Tool: 1 set
  • Cut-Off Knife: 1 pc
  • Cleaning Tool: 1 set
  • Charging Tool: 1 set
  • Leveling Meter: 1 set
  • Guiding Bushing: 1 pc
  • Funnel: 1 pc
  • Cylinder: 1 pc
  • Spanner: 1 pc
  • Standard Weights:
    • 600 g: 1 pc
    • 875 g: 1 pc
    • 960 g: 1 pc
    • 1000 g: 1 pc
    • 1200 g: 1 pc
    • 1640 g: 1 pc
    • 2000 g: 8 pcs

Gallery

Coming Soon

Application

The VIP 400C1 Touchscreen Melt Flow Rate and Volume Analyzer is a high-performance, cost-effective tabletop instrument designed to measure both the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of a wide range of thermoplastic raw materials, including granules, film strips, and other forms. This device is particularly valuable for quality control in thermoplastics manufacturing, especially when comparing materials with different filler content or evaluating filled and unfilled thermoplastics. The VIP 400C1 features manual weight-loading for flexible sample preparation.

Compliance Standards

  • ISO 1133
  • ASTM D1238
  • GB/T 3682 (Method A & B)
  • BS 2782

Features

  • Measures both MFR and MVR with high precision
  • Clear, multi-line touchscreen display for fast and accurate input of test parameters
  • Built-in microprocessor maintains temperature control within ±0.5°C with rapid ramp-up
  • Automatic material cut-off with a built-in scraper mechanism, controllable to ±0.1 seconds
  • High-accuracy PT100 temperature sensor for consistent performance
  • Automatic conversion of test results with melt density measurement function
  • Built-in micro-printer for immediate test result output
  • Automatic weight-loading device for efficient sample preparation
  • Dual-language software (English and Chinese) with secure password verification for key operations

Specification

  • Operating Temperature: 120°C–450°C
  • Temperature Control Accuracy: ≤0.2°C
  • Temperature Display Resolution: 0.1°C
  • MFR Test Range: 0.01g–200g/min
  • Time Accuracy: 0.01s
  • Displacement Accuracy: ±0.01mm (within 30mm)
  • Measurement Methods: MFR, MVR
  • Temperature Return Time: <4 min
  • Temperature Ramp-Up Time: <30 min
  • Volume Measurement Accuracy: ±0.03% F.S.
  • Cut-Off Interval: 1–36000s
  • Power Supply: 220V/50Hz or 110V/60Hz (specify when ordering)
  • Automatic Extrusion Cut-Off

Accessories

  • Piston Rod: 1 pc
  • Die: 1 pc
  • Die Cleaning Tool: 1 set
  • Cut-Off Knife: 1 pc
  • Cleaning Tool: 1 set
  • Charging Tool: 1 set
  • Leveling Meter: 1 set
  • Guiding Bushing: 1 pc
  • Funnel: 1 pc
  • Cylinder: 1 pc
  • Spanner: 1 pc
  • Standard Weights:
    • 600 g: 1 pc
    • 875 g: 1 pc
    • 960 g: 1 pc
    • 1000 g: 1 pc
    • 1200 g: 1 pc
    • 1640 g: 1 pc
    • 2000 g: 8 pcs

Gallery

Coming Soon
