HZ-1702C Charpy Impact Testing Instrument
Whatsapp
Email

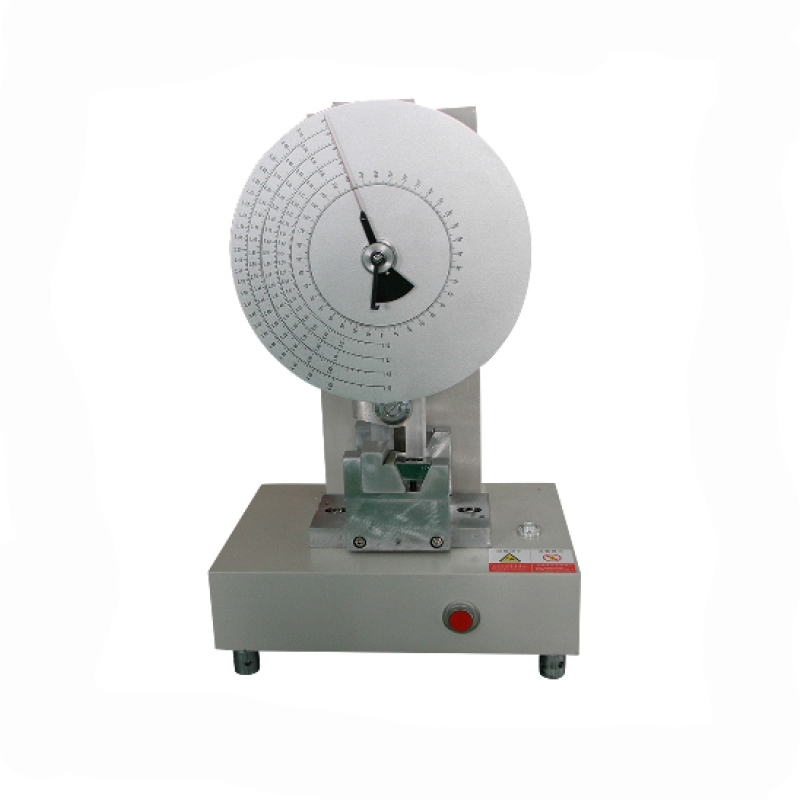

HZ-1702C Charpy Impact Testing Instrument

[product_tags_no_comma_alt]
Request a quote
Whatsapp
Email

Application

The HZ-1702C Charpy Impact Testing Instrument is a reliable and user-friendly device designed for measuring the impact resistance of non-metallic materials, including rigid plastics, fiber-reinforced composites, fiberglass, ceramics, and asbestos. Its simple structure, easy operation, and precise data output make it an essential tool for material impact testing. This instrument adheres to JB/T8761, GB/T1043, and ISO179 standards, ensuring consistent and accurate results.

Features

  • Clear and easy-to-read pointer display for impact energy measurement
  • Electric hammer body disc for efficient and reliable testing
  • Simplified design for convenient operation and accurate data collection
  • Suitable for a wide range of non-metallic materials

Specification

Technical Specifications Pendulum Energy Options:

  • 0.5J
  • 1J
  • 2J
  • 4J
  • 5J

Pendulum Moment:

  • 0.258 Nm (0.5J)
  • 0.516 Nm (1J)
  • 1.031 Nm (2J)
  • 2.062 Nm (4J)
  • 2.578 Nm (5J)

Minimum Degree Value:

  • 0.005J for 0.5J pendulum
  • 0.01J for 1J pendulum
  • 0.02J for 2J pendulum
  • 0.04J for 4J pendulum
  • 0.05J for 5J pendulum

Additional Specifications:

  • Impact Speed: 2.9 m/s
  • Pendulum Pre-Elevation: 160°
  • Distance from Pendulum Shaft Center to Sample Center: 221 mm
  • Jaw Radius: 1 mm
  • Impact Blade Angle: 30°
  • Impact Blade Radius: 2 mm

Sample Dimensions:

  • Type 1: 80 ± 2 mm (L) x 10 ± 0.5 mm (W) x 4 ± 0.2 mm (T); Support Distance: 60 mm
  • Type 2: 50 ± 1 mm (L) x 6 ± 0.2 mm (W) x 4 ± 0.2 mm (T); Support Distance: 40 mm
  • Type 3: 120 ± 2 mm (L) x 15 ± 0.5 mm (W) x 10 ± 0.5 mm (T); Support Distance: 70 mm
  • Type 4: 125 ± 2 mm (L) x 13 ± 0.5 mm (W) x 13 ± 0.5 mm (T); Support Distance: 95 mm

Gallery

Coming Soon

Application

The HZ-1702C Charpy Impact Testing Instrument is a reliable and user-friendly device designed for measuring the impact resistance of non-metallic materials, including rigid plastics, fiber-reinforced composites, fiberglass, ceramics, and asbestos. Its simple structure, easy operation, and precise data output make it an essential tool for material impact testing. This instrument adheres to JB/T8761, GB/T1043, and ISO179 standards, ensuring consistent and accurate results.

Features

  • Clear and easy-to-read pointer display for impact energy measurement
  • Electric hammer body disc for efficient and reliable testing
  • Simplified design for convenient operation and accurate data collection
  • Suitable for a wide range of non-metallic materials

Specification

Technical Specifications Pendulum Energy Options:

  • 0.5J
  • 1J
  • 2J
  • 4J
  • 5J

Pendulum Moment:

  • 0.258 Nm (0.5J)
  • 0.516 Nm (1J)
  • 1.031 Nm (2J)
  • 2.062 Nm (4J)
  • 2.578 Nm (5J)

Minimum Degree Value:

  • 0.005J for 0.5J pendulum
  • 0.01J for 1J pendulum
  • 0.02J for 2J pendulum
  • 0.04J for 4J pendulum
  • 0.05J for 5J pendulum

Additional Specifications:

  • Impact Speed: 2.9 m/s
  • Pendulum Pre-Elevation: 160°
  • Distance from Pendulum Shaft Center to Sample Center: 221 mm
  • Jaw Radius: 1 mm
  • Impact Blade Angle: 30°
  • Impact Blade Radius: 2 mm

Sample Dimensions:

  • Type 1: 80 ± 2 mm (L) x 10 ± 0.5 mm (W) x 4 ± 0.2 mm (T); Support Distance: 60 mm
  • Type 2: 50 ± 1 mm (L) x 6 ± 0.2 mm (W) x 4 ± 0.2 mm (T); Support Distance: 40 mm
  • Type 3: 120 ± 2 mm (L) x 15 ± 0.5 mm (W) x 10 ± 0.5 mm (T); Support Distance: 70 mm
  • Type 4: 125 ± 2 mm (L) x 13 ± 0.5 mm (W) x 13 ± 0.5 mm (T); Support Distance: 95 mm

Gallery

Coming Soon
