The stress-strain curve is a fundamental tool in material testing, providing valuable insights into the mechanical behavior of various materials. This curve is generated by applying a gradually increasing load to a test specimen, allowing engineers and researchers to analyze deformation characteristics and determine key material properties such as Young’s modulus, yield strength, and ultimate tensile strength.
What is a Stress-Strain Curve?
The stress-strain curve represents the relationship between stress (force per unit area) and strain (deformation relative to original dimensions). It provides a visual representation of how a material reacts under tensile, compressive, or shear forces.
Types of Stress and Strain
Stress and strain can be classified based on the type of force applied:
- Tensile Stress & Strain: Increases the length of the material, causing it to become thinner.
- Compressive Stress & Strain: Decreases the length of the material, making it thicker.
- Shear Stress & Strain: Results from forces acting parallel to the material surface, causing deformation.
Mathematical Definitions
Stress (σ) Formula:
Stress (σ) = Force (F) / Cross-sectional Area (A)

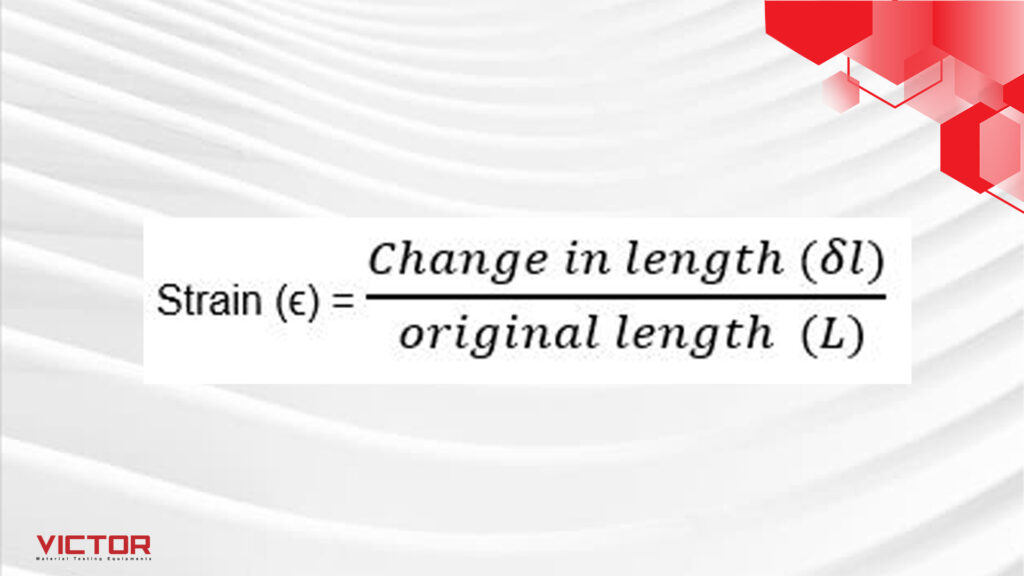

Strain (ε) Formula:
Strain (ε) = Change in Dimension (ΔL) / Original Dimension (L)
Plotting a Stress-Strain Curve
A Universal Testing Machine (UTM) is commonly used to generate a stress-strain curve. The procedure includes:
- Securing the specimen in the grips of the UTM.
- Attaching an extensometer to measure strain.
- Applying force at a uniform rate until the specimen fractures.
- Recording force and strain data to generate the curve.
Interpreting the Stress-Strain Curve
The shape of the stress-strain curve varies depending on the material being tested, such as brittle, ductile, metallic, or polymeric materials. Key points on the curve include:
- Proportional Limit: The maximum stress where stress and strain remain directly proportional.
- Elastic Limit: The threshold beyond which permanent deformation occurs.
- Yield Point: The stress level where plastic deformation begins.
- Ultimate Stress Point: The maximum stress a material can endure before necking occurs.
- Fracture or Breaking Point: The final point where the material completely fails.
Understanding these points is crucial for selecting materials that meet engineering and industrial requirements.
Applications of the Stress-Strain Curve
- Material Selection: Helps engineers choose suitable materials for construction, automotive, and aerospace applications.
- Quality Control: Ensures manufactured materials meet industry standards.
- Structural Analysis: Aids in predicting material performance under different loading conditions.
Conclusion
The stress-strain curve is an essential tool for evaluating the mechanical properties of materials. By analyzing the curve, engineers and manufacturers can ensure that materials meet strength, flexibility, and durability requirements for various industrial applications.
